Submersible Motors 6 inches
>>
>>

Submersible Motors 6 inches

Submersible Motors 6 inches
6'' 50/60 Hz

6" submersible motors rewindable water fille. Power from 4 kW-5,5 HP up to 184 kW-250 HP

The technical specifications grant high performances, superior quality, trustable reliability and ease of installation. Panelli motors are suitable for use with variable speed drive: 30-50 Hz or 40-60 Hz are the recommended frequency ranges

- 6" motors from 4 kW up to 37 kW.

Out of standard executions
Star-Delta starting - All models available in fully stainless steel: AISI 304, AISI 316, Duplex or AISI 904 - Higher water temperatures up to 50°C with PE2+PA winding - Mechanical seal available upon request.

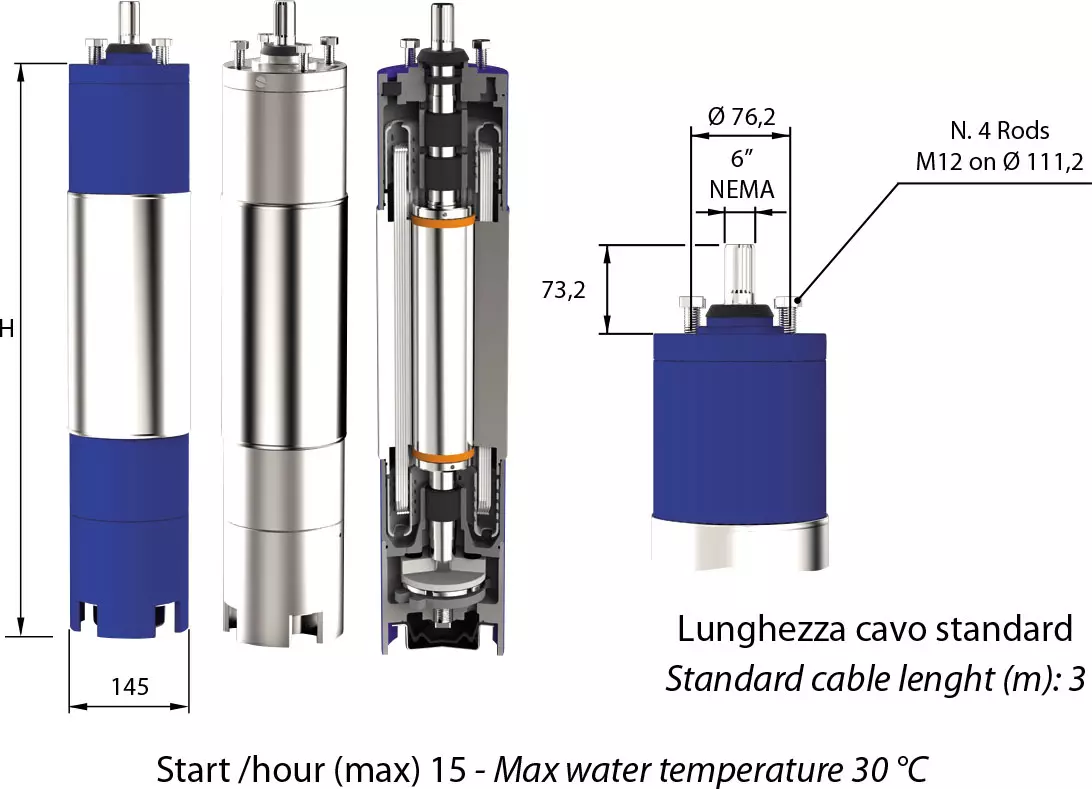

Manifacturing features

  • Stainless steel sleve
  • Upper and lower supports and base in G 25 cast iron. Fully stainless steel version available in AISI 304, AISI 316, Duplex and AISI 904 - NEMA coupling
  • Thermoplastic protection of winding copper wire are used in the statoric part, upon request PE2+PE winding wire for higher water temperatures
  • Isolation class F
  • Protection IP68
  • Rotor with AISI 431 shaft, bearing bushes in carbide (upon request available in BSPB15% bronze). Thrust bearing Mitchell type suitable to withstand the maximum load with very high safety standards.
  • Compensation diaphragm able to equalize inner and outer pressures and related variations due to the temperature spectrum during the motor functioning in the well.

Characteristics

  • Available in 50 Hz and 60 Hz versions
  • Maximum number of starts per hour: (6’’:15)
  • (8’’ :10)
  • (10’’: 10)Water maximum temperature: 30°C
  • with PE2+PA winding up to 50°C
  • Axial load 6’’: 16.000 N from 4 to 15 kW25.000 N from 18,5 up to 37 kW . Axial load 8’’: 45.000 N from 30 up to 110 kW
  • Axial load 10’’: 60.000N from 75 up to 184
Submersible Motors 6 inches - 2





Scheda tecnica dei Submersible Motors 6 inches 50 Hertz

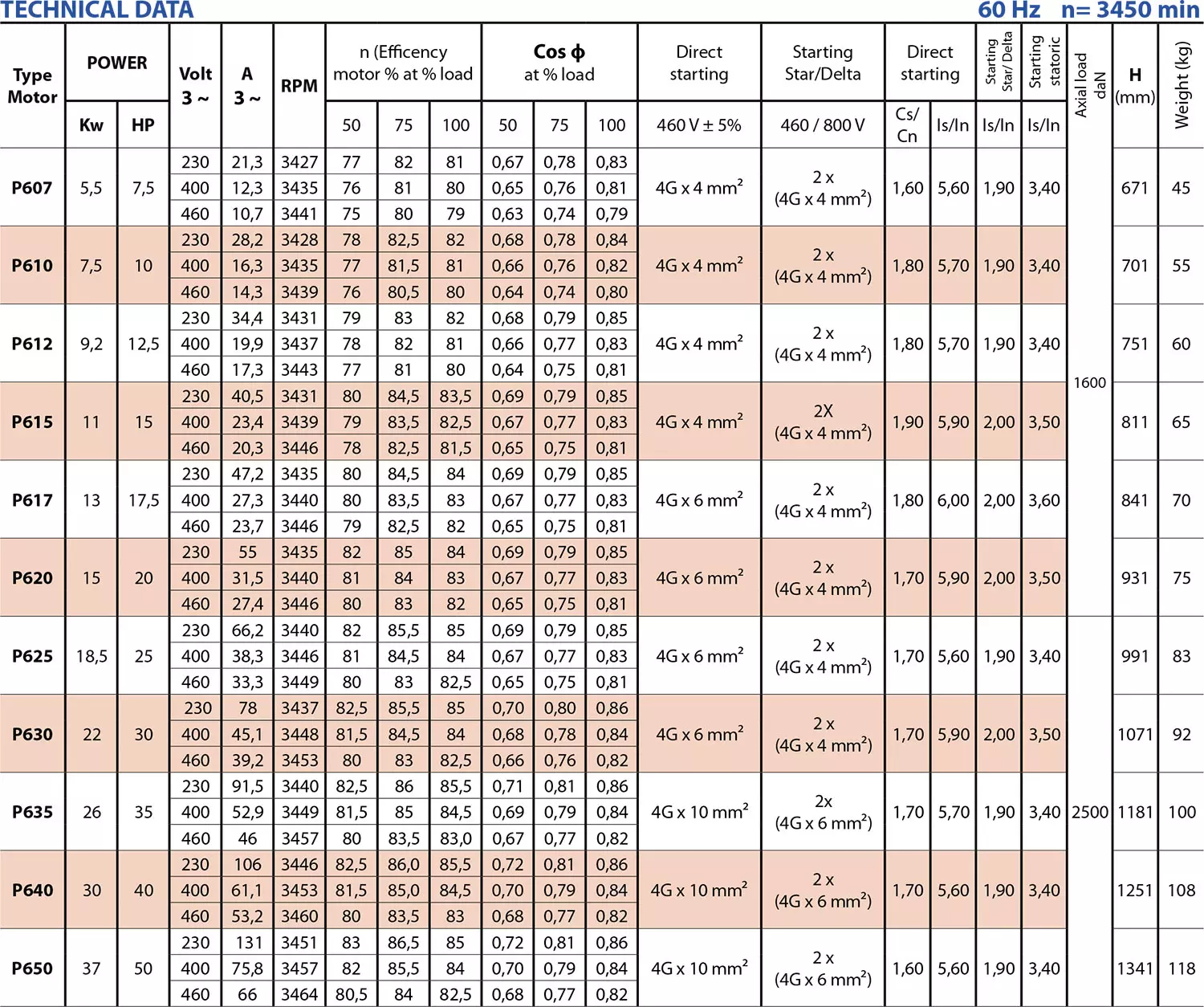

Scheda tecnica dei Submersible Motors 6 inches 60 Hertz
